Cleme Wago Slim Myf 2x4mm2 Set 16 Buc

Description:

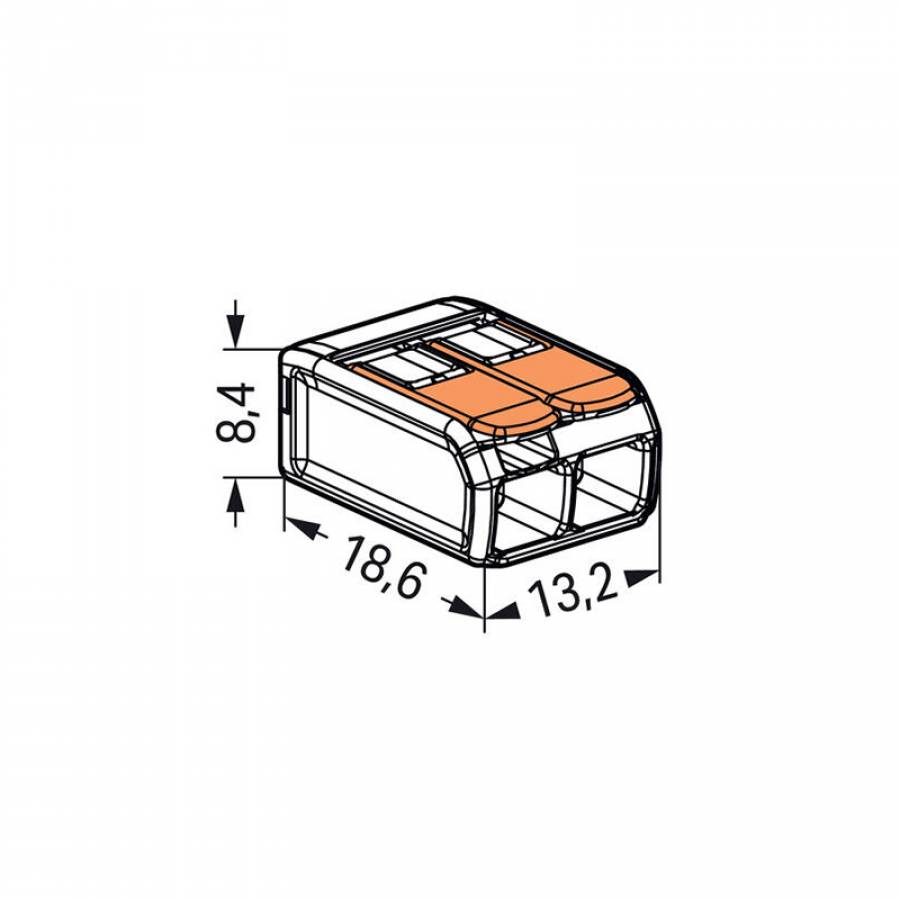

The WAGO SLIM MYF 2x4mm² clamps (model 221-413) are compact connectors with levers for quick connection of electrical wires without tools, from the 221 series, with CAGE CLAMP® technology. General description They connect 2 conductors with a section of up to 4 mm² (solid, stranded or finely stranded), being 40% more compact than the 222 series and with a transparent housing for visual inspection. They allow easy installation, accessible testing and are ENEC and UL approved for global use. Technical specifications Number of positions: 5 Conductor section: 0.14...4 mm² (solid/stranded: 0.2...4 mm²; finely stranded: 0.14...4 mm²; 24-12 AWG) Nominal voltage: 450 V (II/2) Nominal current: 32 A Maximum temperature: 105 °C (ambient 85 °C) Insulation length: 11 mm Dimensions: 18.6 x 8.3 x 18.7 mm Weight: 2.5 g Material: Copper, transparent housing, UL94 V2 flammability Usage Pull the orange lever, insert the wire and close the lever; side entry, double test ports. Ideal for junction boxes, applications with limited space in household or industrial electrical installations. Set of 16 pieces
