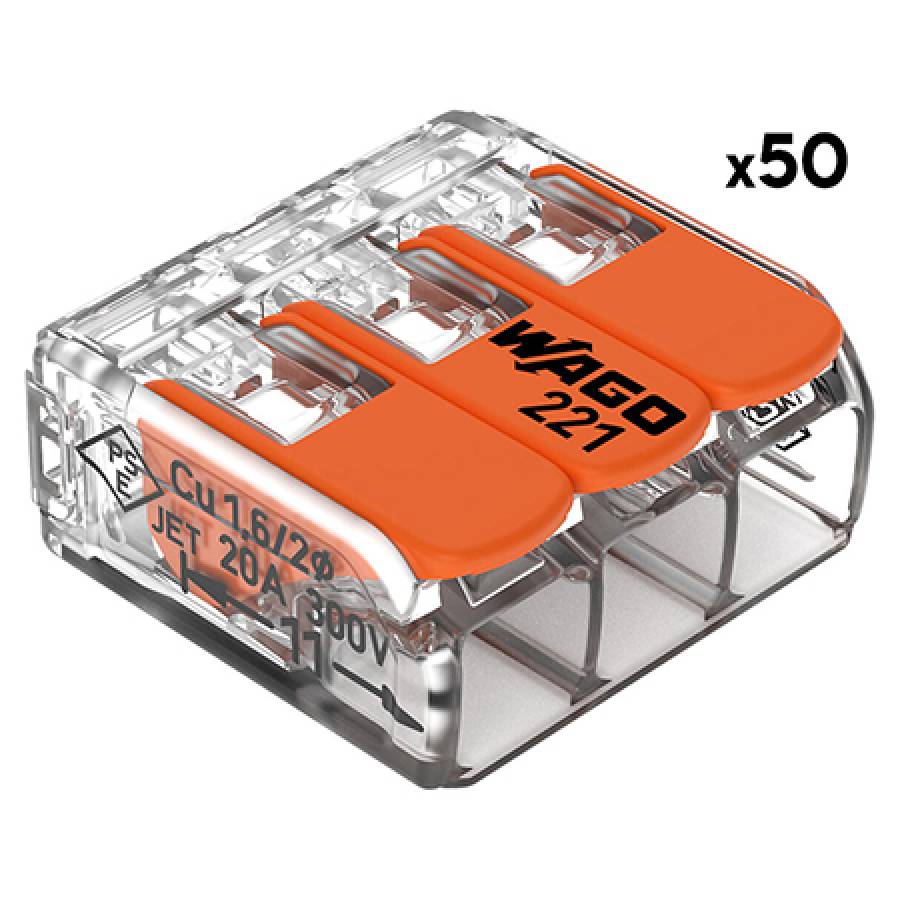

Cleme Wago Slim Myf 3x4mm2 Set 50 Buc

Description:

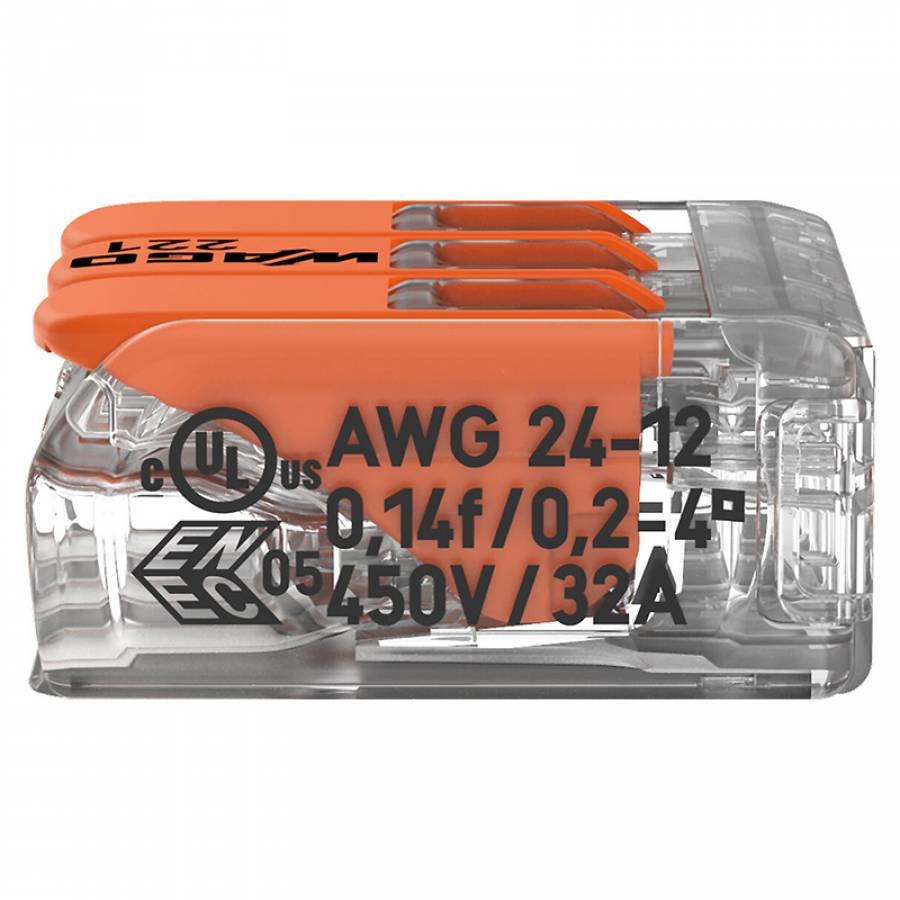

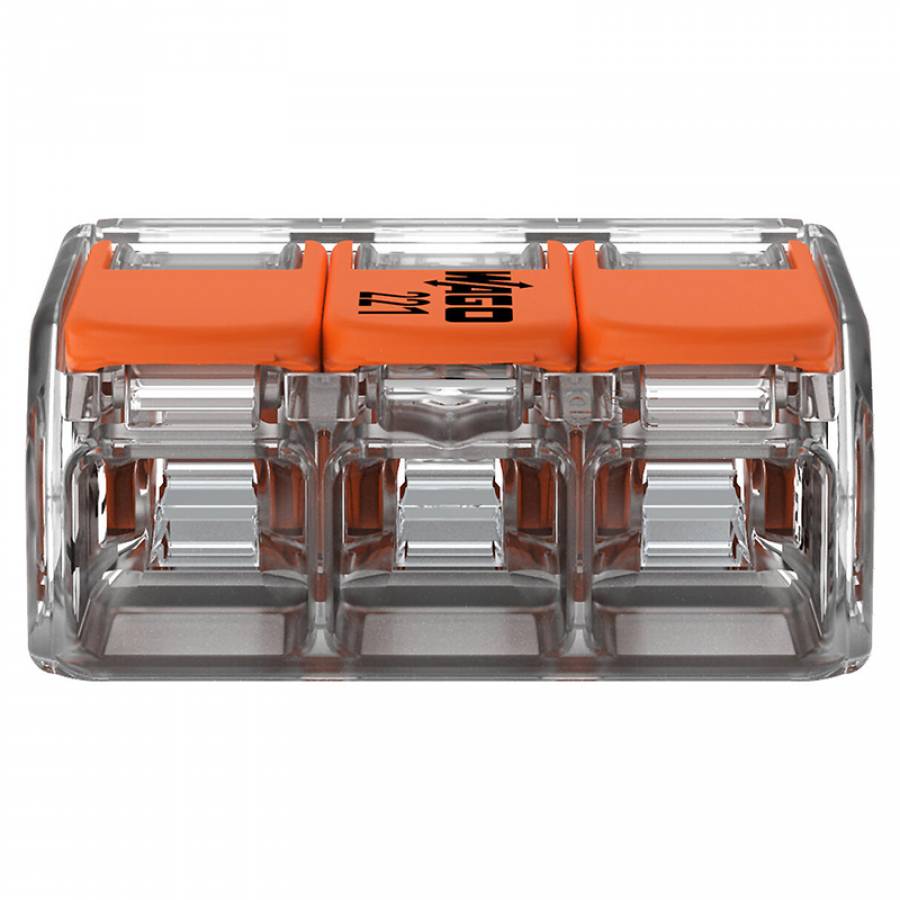

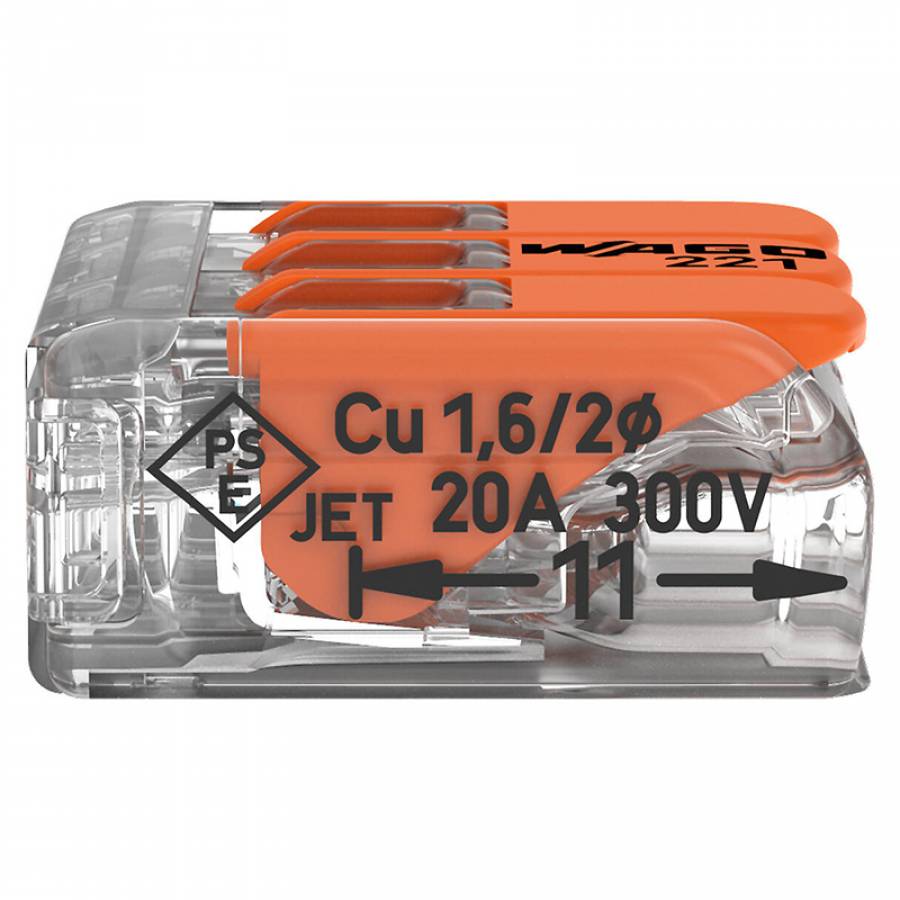

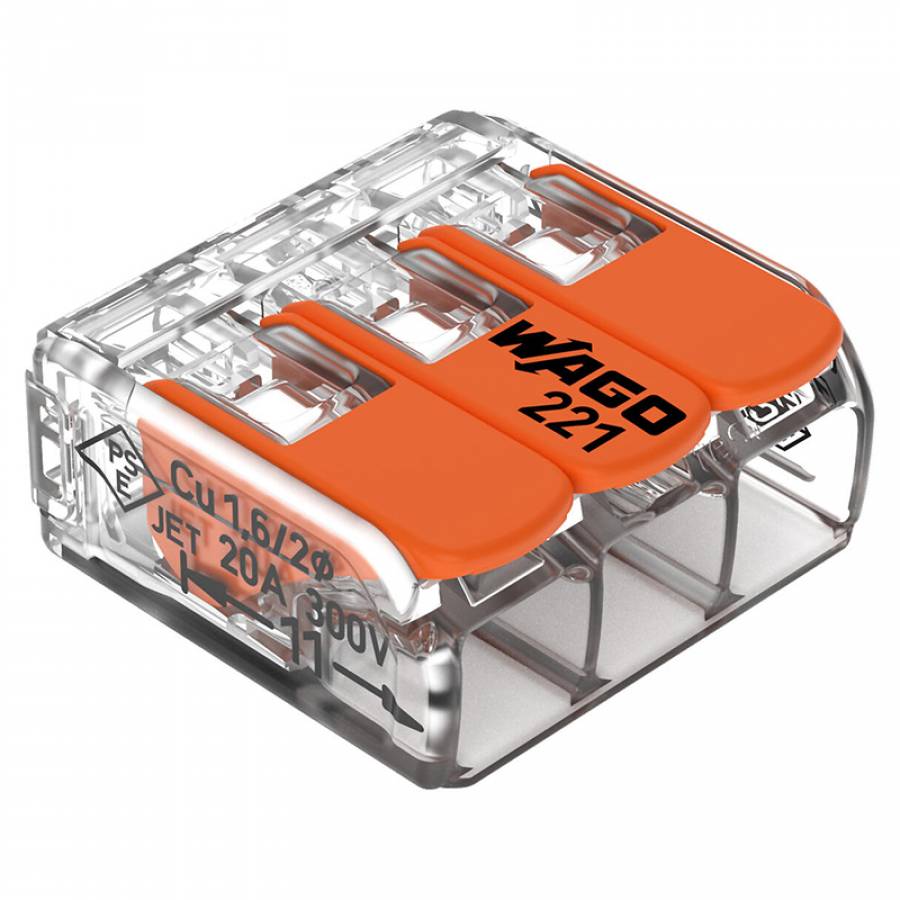

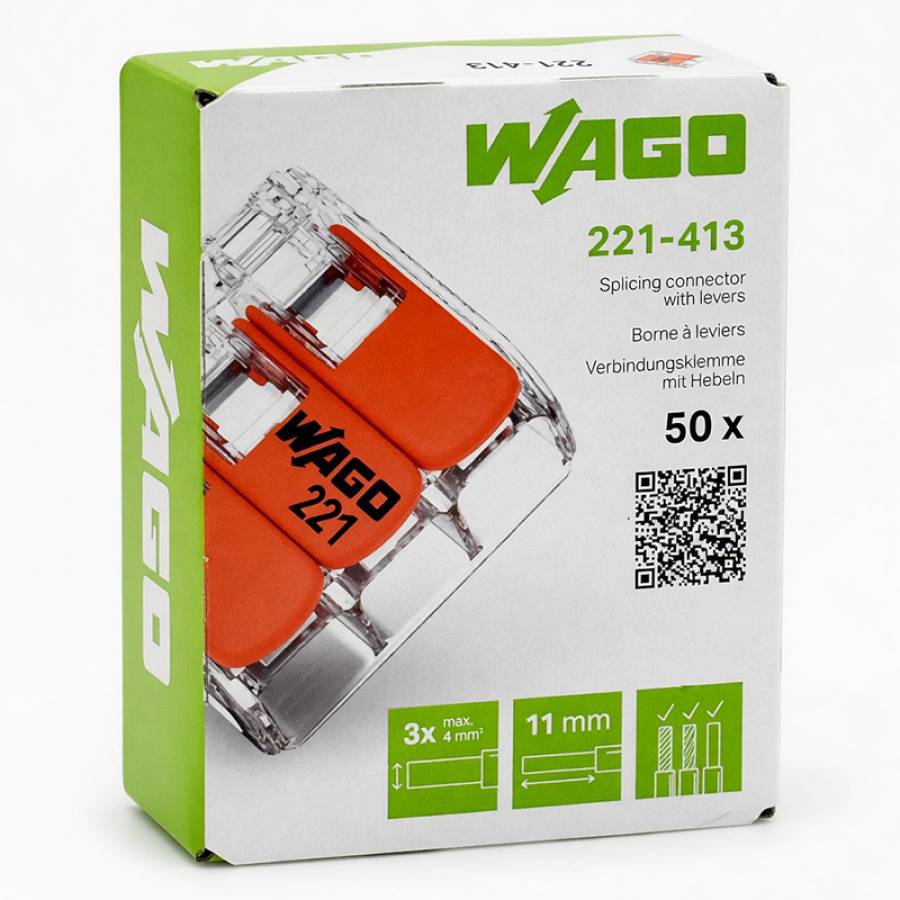

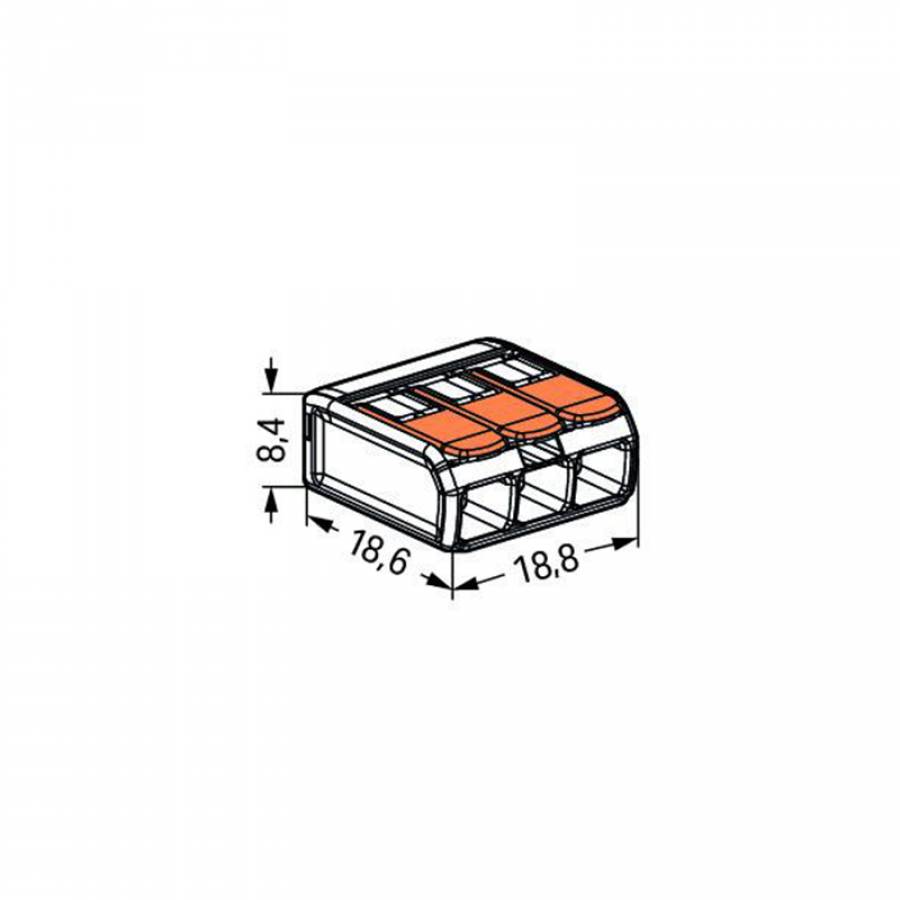

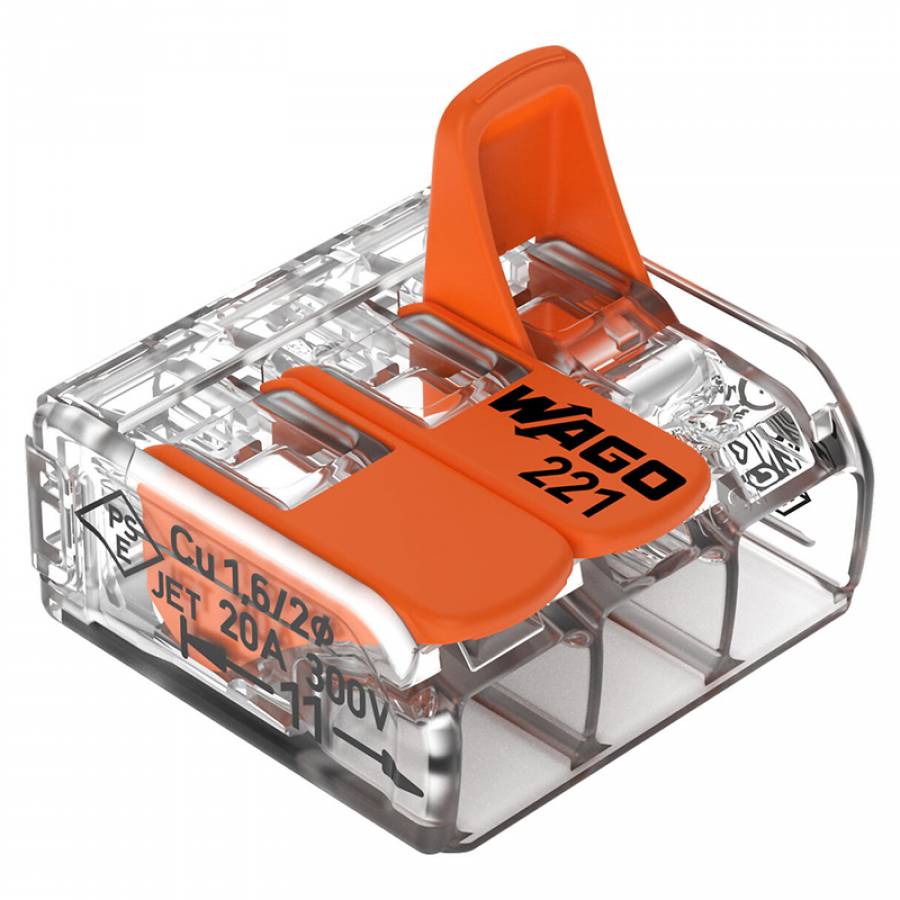

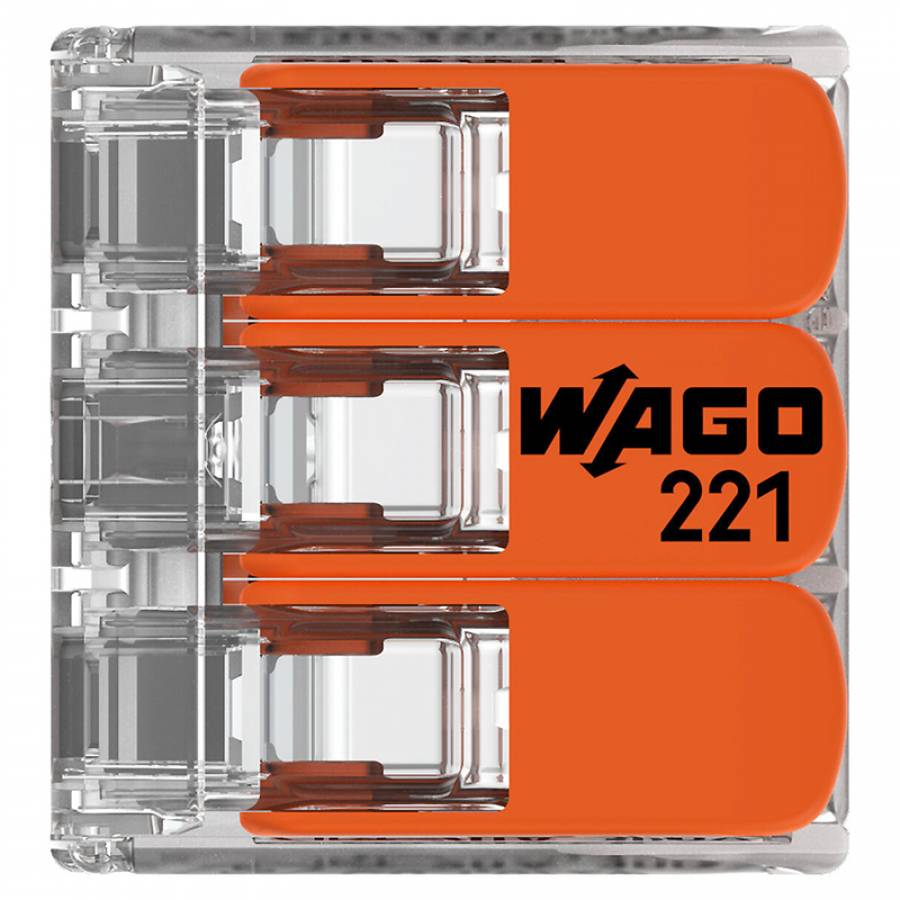

The WAGO SLIM MYF 3x4mm² clips (model 221-413) are compact connectors with levers for quickly joining electrical wires without tools, from the 221 series, with CAGE CLAMP® technology. General description These connect three conductors with a section of up to 4 mm² (solid, stranded, or fine-stranded), being 40% more compact than the 222 series and with a transparent housing for visual inspection. They allow easy installation, accessible testing, and are ENEC and UL approved for global use. Technical specifications Number of positions: 3 Conductor section: 0.14...4 mm² (solid/stranded: 0.2...4 mm²; fine-stranded: 0.14...4 mm²; 24-12 AWG) Nominal voltage: 450 V (II/2) Nominal current: 32 A Maximum temperature: 105 °C (ambient 85 °C) Insulation length: 11 mm Dimensions: 18.6 x 8.3 x 18.7 mm Weight: 2.5 g Material: Copper, transparent housing, UL94 V2 flammability Usage Pull the orange lever, insert the wire, and close the lever; side entry, double testing ports. Ideal for junction boxes, applications with limited space in household or industrial electrical installations. Set of 50 pieces
