Cleme Wago Cu Parghie 0.2-4mm2 Set 60 Buc

Description:

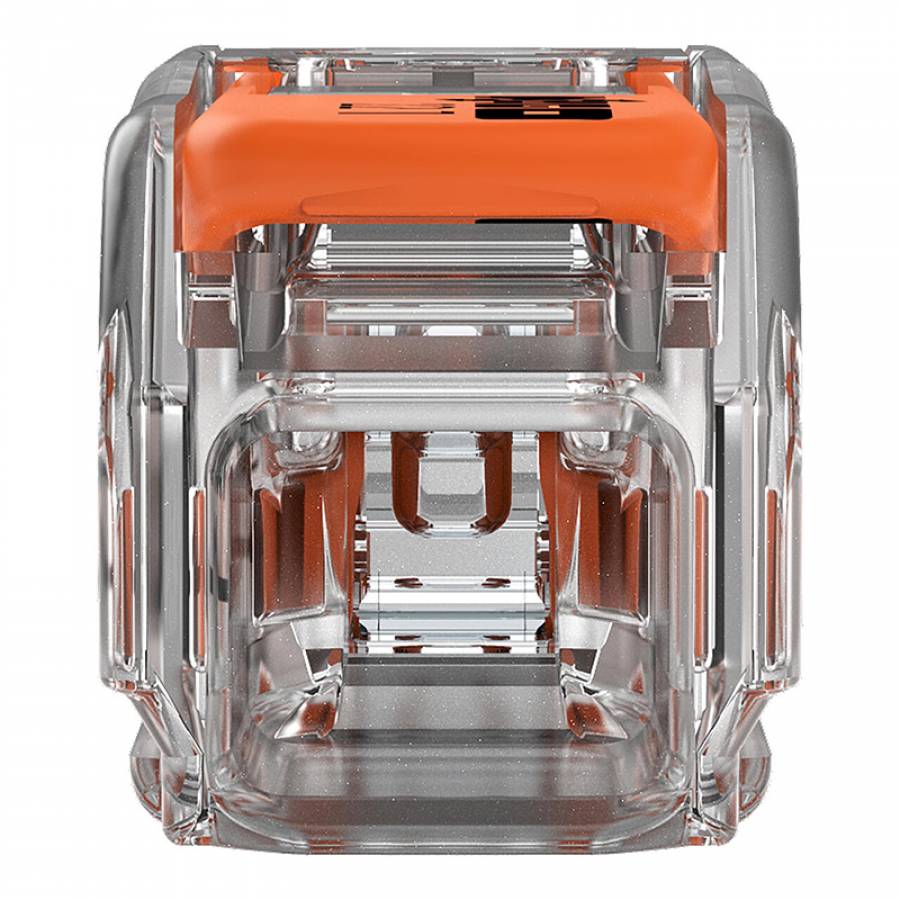

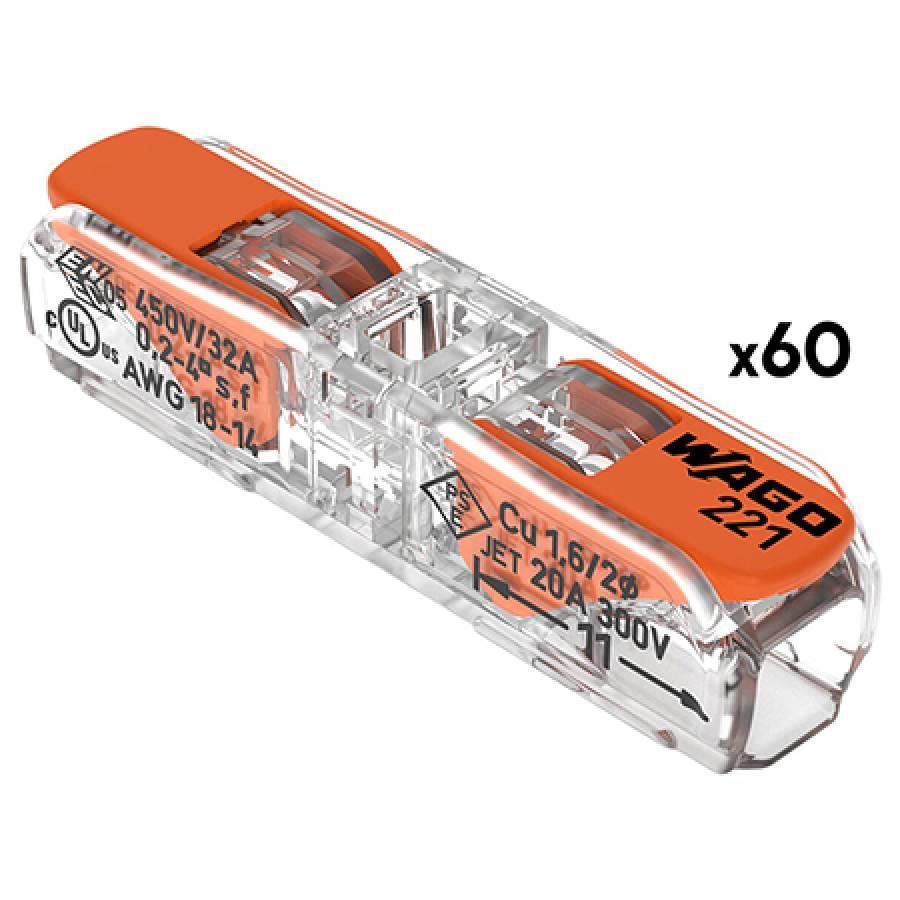

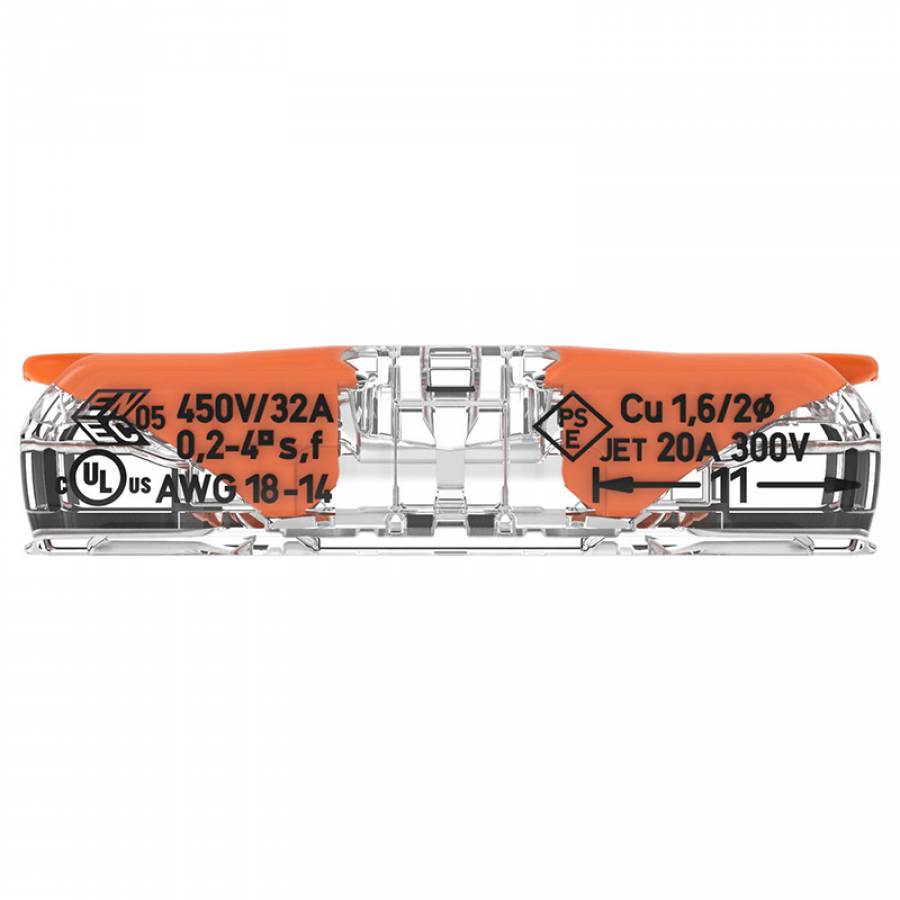

221-2411 is an in-line connecting terminal with levers from the WAGO 221 series, for 2 conductors with a maximum cross-section of 4 mm², with CAGE CLAMP® technology for quick and secure connections, without the need for tools. General description This compact in-line connector allows the connection of two aligned conductors, with a transparent housing for visual inspection of the connection and red levers for easy insertion. It is ideal for applications with limited space, such as lighting fixtures or junction boxes. Technical specifications Number of conductors: 2 Conductor cross-section: 0.14...4 mm² (solid/stranded: 0.2...4 mm²; multi-wire: 0.14...2.5 mm²; 24-12 AWG) Nominal voltage: 450 V (II/2); overvoltage 4 kV Nominal current: 32 A Temperature: Max. 105 °C (ambient 85 °C) Insulation strip length: 11 mm Dimensions: 18.6 x 8.3 x 18.7 mm (approx.) Material: Copper, transparent polymer V2 Use Lift the lever, insert the wire (insulation strip length 11 mm), and close; easy disconnection by lever. ENEC, UL approved; testing through double ports.
