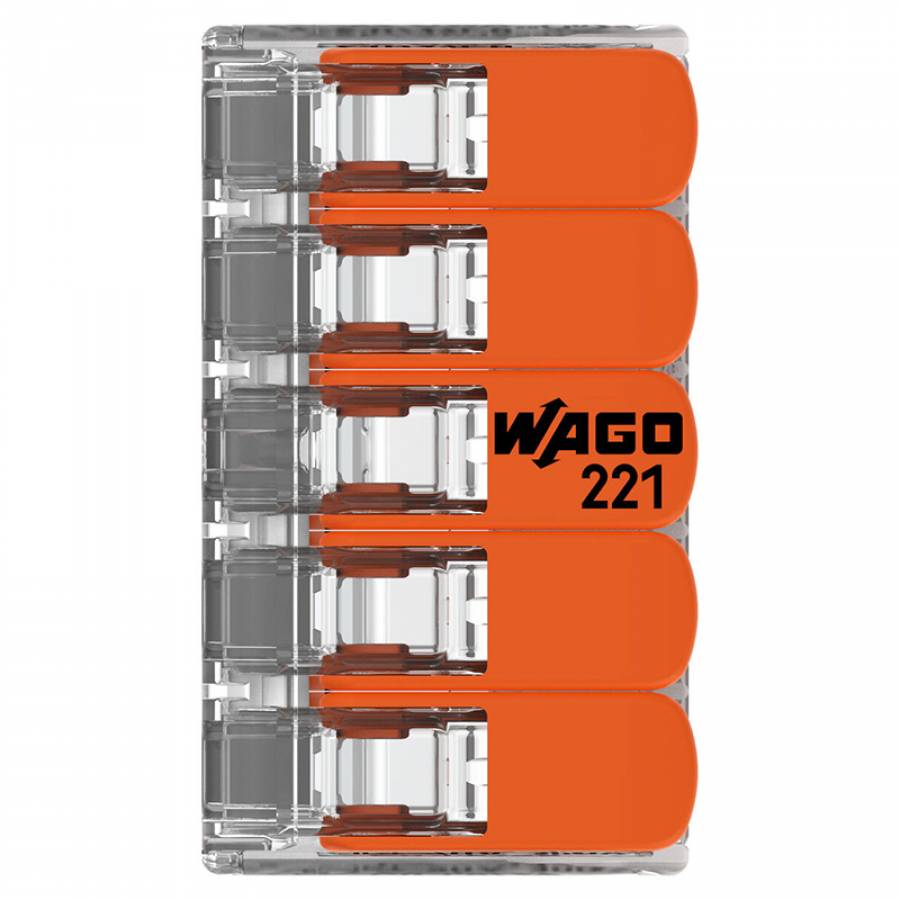

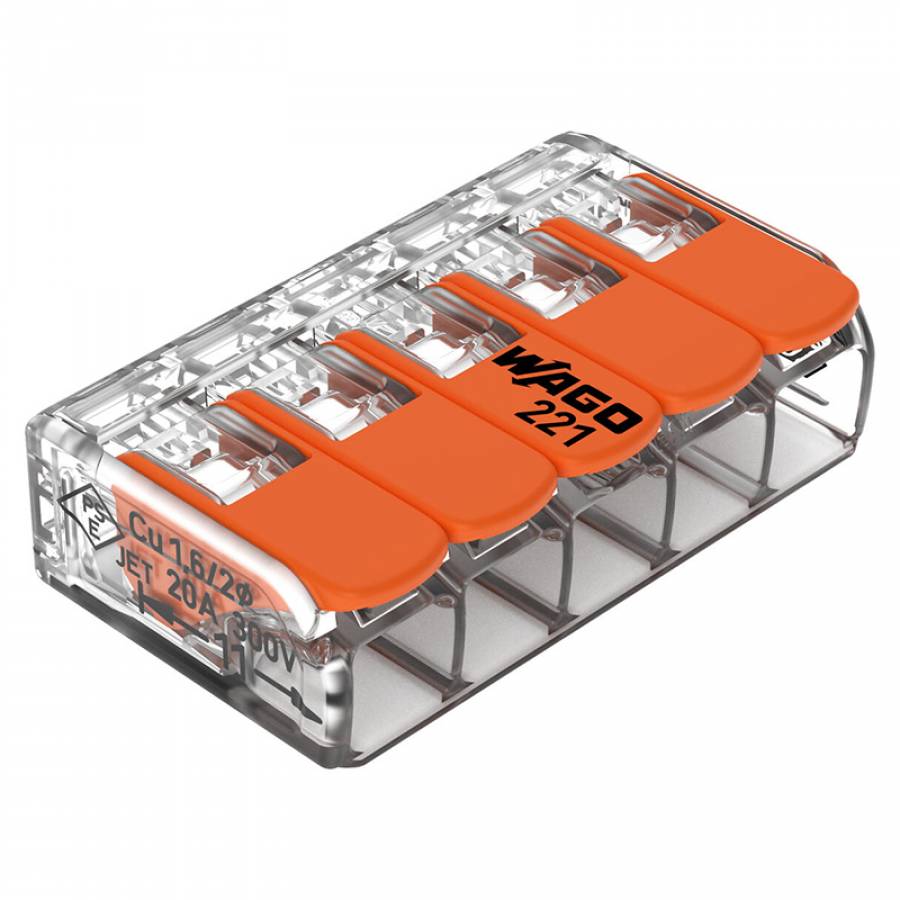

Cleme Wago Slim Myf 5x4mm2 Set 8 Buc

Description:
The WAGO SLIM MYF 5x4mm² clamps (model 221-413) are compact connectors with levers for quick connection of electrical wires without tools, from the 221 series, with CAGE CLAMP® technology.

General description:
These connect 5 conductors with a section of up to 4 mm² (solid, stranded, or finely stranded), being 40% more compact than the 222 series and with a transparent housing for visual inspection. They allow easy installation, accessible testing, and are ENEC and UL approved for global use.

Technical specifications:
- Number of positions: 5 - Conductor section: 0.14...4 mm² (solid/stranded: 0.2...4 mm²; finely stranded: 0.14...4 mm²; 24-12 AWG) - Rated voltage: 450 V (II/2) - Rated current: 32 A - Maximum temperature: 105 °C (ambient 85 °C) - Insulation length: 11 mm - Dimensions: 18.6 x 8.3 x 18.7 mm - Weight: 2.5 g - Material: Copper, transparent housing, UL94 V2 flammability

Usage:

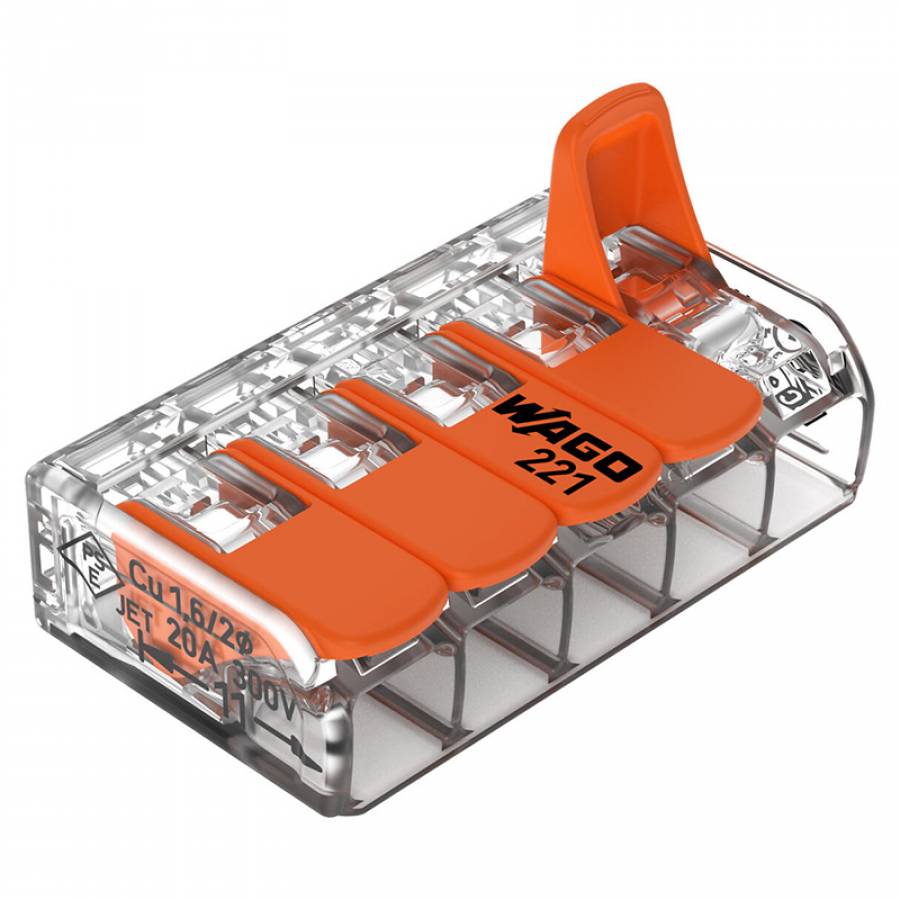

Pull the orange lever, insert the wire, and close the lever; lateral entry, double test ports. Ideal for junction boxes, applications with limited space in household or industrial electrical installations.

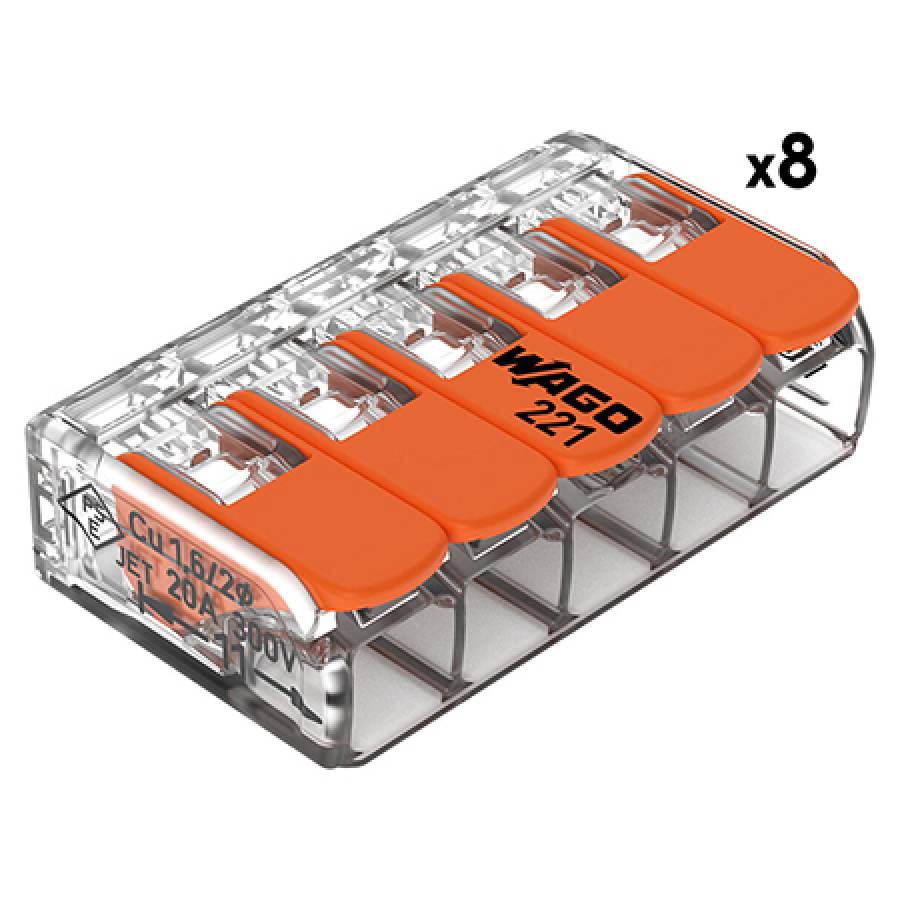

Set of 8 pieces
